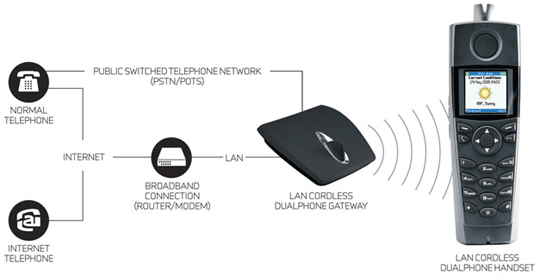

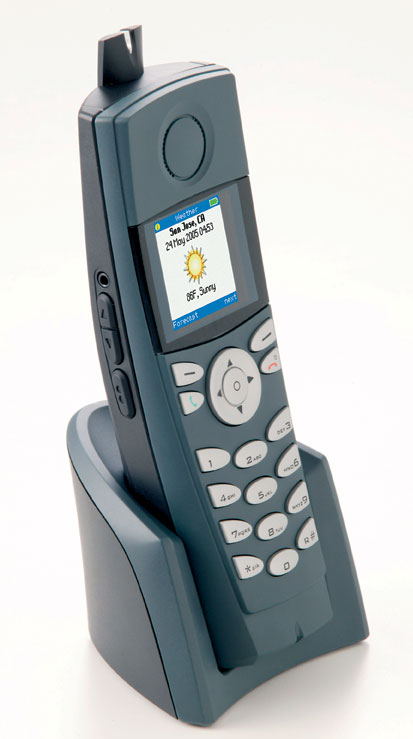

Kabelloses LAN DUALphone Telefonieren per Internet ist in und die Nachfrage nach einem schnurlosen Internetzugang steigt. Das neue LAN Cordless DUALphone ist ein SIP-Telefon (Session Initiation Protocol) und bietet eine Kombination aus Standard-Telefon, Internet-Telefon und Empfangsgerät für Internet-Inhalte. Die Basisstation ist sowohl mit dem Telefonanschluss als auch mit dem Internetanschluss verbunden, sodass Anrufe über beide Verbindungen möglich sind. Das LAN Cordless DUALphone liefert Kunden auf dem brillanten Farbdisplay Informationen wie Nachrichten, E-Mails oder Wetterberichte. Die Verfügbarkeit ist dabei abhängig von den Services, die der jeweilige Carrier zur Verfügung stellt.Bild vergrössern
Für mehr Informationen und Preise hier klicken!
Technische Unterlagen / Prospekt: Prospekt für Provider, english (PDF 2,9 MB) , Prospekt für OEM-Kunden, english (PDF 2,3 MB) Systemübersicht
Technische Daten Cordlee LAN DUALphone:
Call and telephony features
1 VoIP Call (SIP 2.0 – RFC3261)
8 handsets
Barge-in
Call forward all, on busy, on no answer (support for soft switch)
Voice mail support (reception and handling of voice mail indication, and call to voice mail server) (soft switch)
Call timer
Call transfer; call hold (internal calls – GW)
Call waiting indication
Caller ID with name from phonebook
Distinctive ringing (based on CID) and IP and PSTN call
Call log: incoming/outgoing/missed calls
Call return (from call log)
Intercom – handset to handset via gateway
Phonebook min. 200 entries (gateway)
Speed dial
Conferencing (2 handsets + 1 VoIP or PSTN)
Call hang up – upon return to charging cradle
DTMF sending in call (in band, info message)
Emergency call routing to PSTN or VoIP
Audio features
Mute (disable microphone – softkey activation)
Receiver volume control – 6 levels
Ring tones melodies (polyphonic generator, 10 pre-programmed tones)
Ringer volume – 6 levels + off (silence ringer - icon will be displayed)
Key sounds – click, DTMF and special tones (2)
Low battery & out of range audible warnings
Speakerphone
Headphone jack (2.5 mm)
Other features
Graphical menu system
Auto answer (when handset is lifted from charger)
Battery pack: 2 AA, 1700mAh
Separate charging station for handset
Hearing aid compatible
Key lock option
Menu language 5 options
On-hook dialing (pre-dial numbers before pressing off-hook button)
Operating time, 8 hours talk / 240 hours standby
Automatic registration of handset to gateway
SIP registration automatically, via http-page or from handset
Display and indicator
On phone
Displayed info in idle mode: signal, battery level, time
Message waiting indicator (missed calls, voice mail)
Warning – WAN outage, VoIP service outage
Display: 128 x 128 bit, 65536 colors and backlit
Indicator on gateway
Power, network, VoIP server, phone call
Control keys
Navigation pad (up/down, left/right)
Softkeys (2 below display)
On-hook (end call & on/off) & off-hook (answer call or redial list)
Speakerphone key
Volume control (side keys)
Ports on gateway
WAN (10/100 Base-T, RJ-45)
Line (RJ-11)
Quality of service
CODECs
G.711 (64 kbps, A-law & u-law)
iLBC (Internet Low Bit Rate CODEC) (RFC 3951/RFC 3952)
IP quality
Phone interface
2-wire
Caller ID transmission (on hook and off hook (CW)
Maintenance, administration & provisioning
DECT interface (3081) or DECT 6.0 (3080)
WiFi friendly
Range min. 50 m indoor, min. 300 m outdoor
